Classic | Compact | Long Ranger

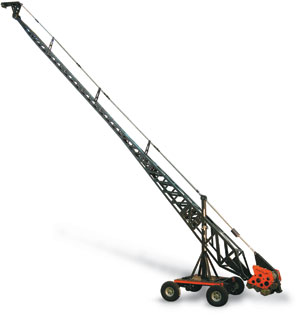

Ultra-light and modular the Giraffe Long Ranger has the longest reach of all our cranes. Either manned or remote,the Long Ranger was designed for space efficiency.



Tapered sections nest inside each other,making it easy to transport in cube vans,planes and boats. All options listed in these specifications include the full 5-in-1 crane system at a surprisingly affordable cost. Fast and versatile, the Giraffe Long Ranger is the pride of our fleet.

technical specs

SPECIFICATIONS

Maximum Lens Height

44' 2"

1347 cm
Drop Down -24' 4" 741 cm
Maximum Reach 41'4" 1259 cm
Maximum Length 53' 8" 1638 cm
Maximum Doorway Clearance 9' 11" 302 cm
Minimum Width on Track 5'2" 158 cm
Minimum Width on Ruff Wheels 6' 9" 206 kg
Maximum Doorway Height 7' 9" 236 cm
Chassis Length 7' 0" 213 cm
Travelling Weight (w/o Ballast Weight) 1015 lbs. 460 kg
Max. Payload 550 lbs. 249 kg
Max. Payload Remote @44'2"(1347 cm) 200 lbs. 91 kg
